Start and Wait for an Approval in Power Automate

In this Microsoft Power Automate Tutorial, I will show you how to work with start and wait for an approval action in Power Automate. Also, I will cover all the below topics:

  • Start and wait for an approval action in Power Automate
  • How to configure and options of start and wait for an approval action Power Automate
  • Start and wait for approval in Power Automate timeout
  • Power Automate condition approval outcome

Power Automate Start and Wait for an Approval

In everyday business processes, you might encounter some common scenarios where we have to review, and approvals are required. In Power Automate, a user can do this automatically.

Power Automate has many flow actions that connect the Power Automate flow and will be useful for the approval process.

Power Automate has three approval connection actions in it:

  1. Create an approval: This flow action will start an approval process, but the flow execution does not stop; the following actions will continue to execute.
  2. Start and wait for an approval: This flow action will start an approval and wait for the assigned user to approve before executing the next flow action.
  3. Wait for approval – This flow action waits until a specific approval task is completed.

Configure Start and Wait for an approval action

Below are the parameters that can be present in start and wait for an approval action of Power Automate:

1. Approval Type: It has four approval type options that can be selected. You can see those types as mentioned in below points:

  • Approve/Reject—Everyone must approve: This type requires each approver to respond to the approval request. If all the approvers approve, the outcome will be Approved; if one user rejects, the outcome will be Rejected.
  • Approve/Reject—First to respond: In this type, the approval outcome will be the first response from any assigned approvers.
  • Custom Responses – Wait for all responses: In this approval type, we can provide custom options for the assigned person to select other than Approve/Reject. Here, it will wait for all the responses to complete the request.
  • Custom Responses—Wait for one response: This is similar to the above approval type, where we can give custom approval options. If any of the approvers submit a response, the flow will be executed for the next steps.
Power Automate start and wait for an approval

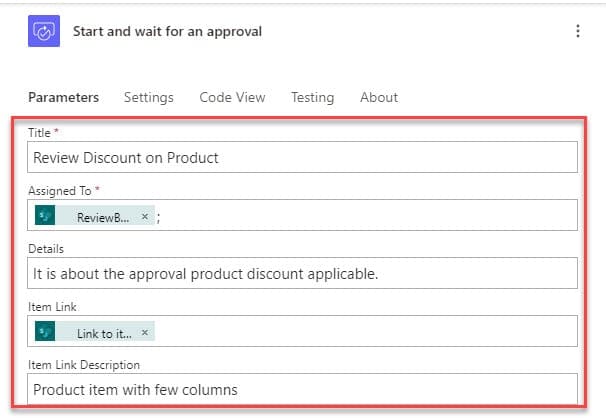

2. Title: Enter the name manually or take the title from the dynamic content.

See also  Expense Reimbursement and Approval using Power Automate [SharePoint List, Microsoft Forms, Planner]

3. Assigned to– It accepts the approver’s email address, separated by a semicolon.

4. Details– Specify the details of the approval request.

5. Item link- Add a link to the item to approve.

6. Item link description- Describe the link to the item.

start and wait for an approval Power Automate

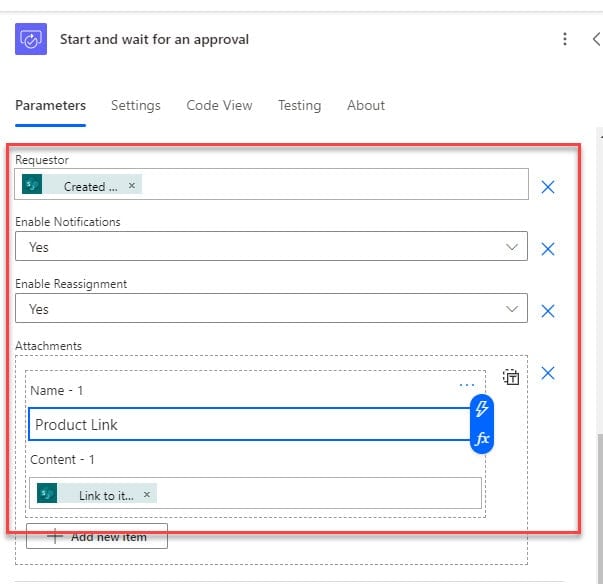

Now, click on Showall to display all the advanced parameters:

7. Requestor:  By default, the user creating the flow is the requestor. But we can also add any other user as the requestor by entering the email address.

8. Enable notifications: This option is used to enable or disable email and push notifications which the approver receives. By default, it is set to Yes.

9. Enable reassignment: By setting this option to No, the approver will not be able to reassign a different approver. By default, it is set to Yes.

10. Attachments: We can attach any files or links to be sent along with the approval request.

Power Automate start and wait for an approval of text

This is how to configure start and wait for approval in Power Automate.

Start and Wait for an Approval in Power Automate Timeout

Here, I will explain how to set the time out for a start and wait for an approval action in Power Automate.

In Power Automate, a user can set the time-out at the start and wait for an approval action. If the time-out is not set, it will take the default value as empty, indicating the flow will run for 30 days.

To provide the time-out duration for approval requests, it is specified using ISO 8601 format. You can check this link.

For example:

  • PT30M- 30 Minutes
  • PT5H- 5 Hours
  • P1D- 1 day
  • P15D- 15 day

Example:

In my requirement, I want the approval request to be sent and responded to within 7 days. Also, I need to update the Discount Approved value to Yes if the approval outcome is Approved. If the Approval outcome is Rejected, then the Discount Approved value to No..

Start and wait for an approval Time out

Check the instructions:

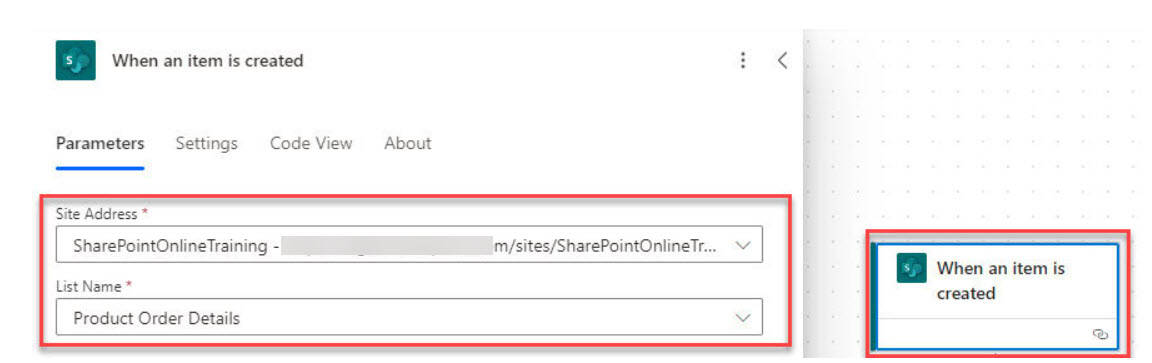

1. Take ‘When an item is created trigger‘ in Power Automate Automated cloud flow. Provide the parameters like Site Address and List Name.

Start and wait for an approval Power Automate timeout

2. After that, Start and wait for an approval flow action, set the required properties:

  • Approval type– Approve/Reject – First to Respond.
  • Title– Select Title from dynamic content.
  • Assigned to– Approver name email from dynamic content.
  • Details– Set the details of the approval request.
  • Item link– Link to item from dynamic content.
Power Automate approval timeout

Now, I wanted to wait for the approval request only for 7 days, so I set the Timeout at the start and waited for an approval action.

  • Inside the action, click Settings -> Set the ISo format of time in the Action Time out option like below:
Power Automate timeout start and wait for an approval

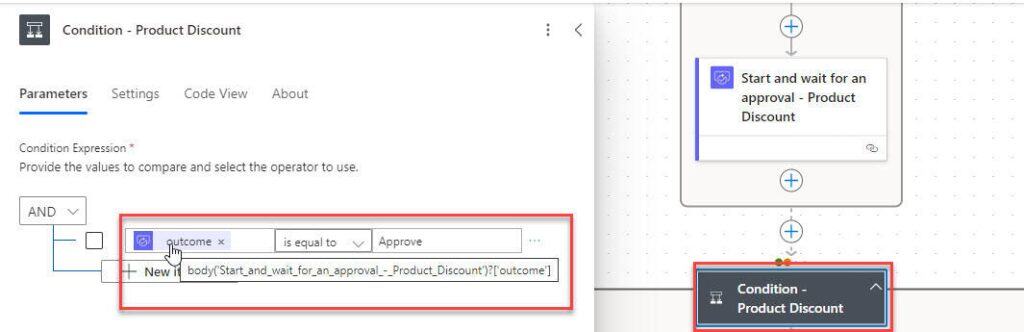

3. Next, I will add a condition to check the outcomes, i.e., whether the response is Approved or rejected. Based on the response, it will update the SharePoint list item value.

Outcome is equal to Approve
Approval workflow timeout in Power Automate

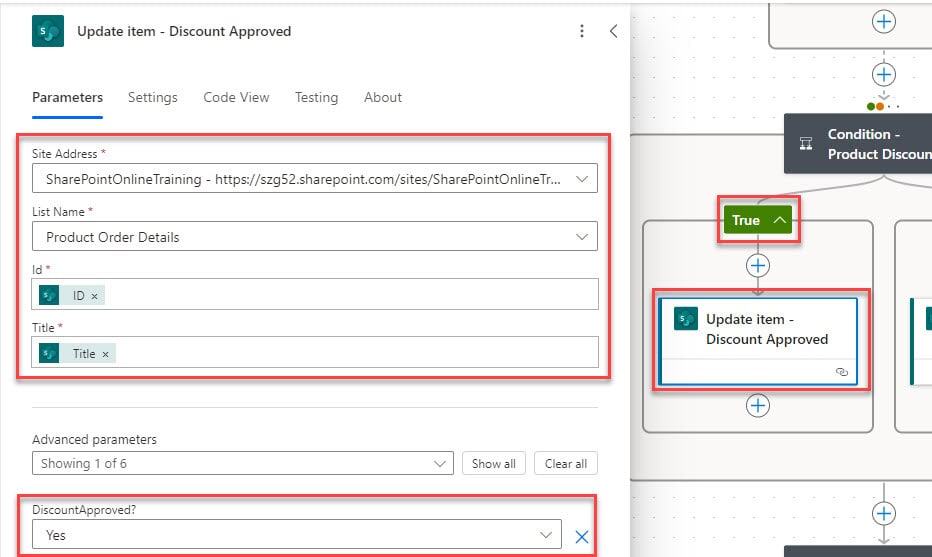

4. Under the True condition, add the Update item flow action to update the item with an approved discount. Configure the parameters like site address and list name.

  • Id: Take the Id column from the dynamic content.
  • Title: Choose the Title column from the dynamic content.
  • Discount Approved?: Choose the value to Yes from the drop-down.
Approval Timeout in Power Automate

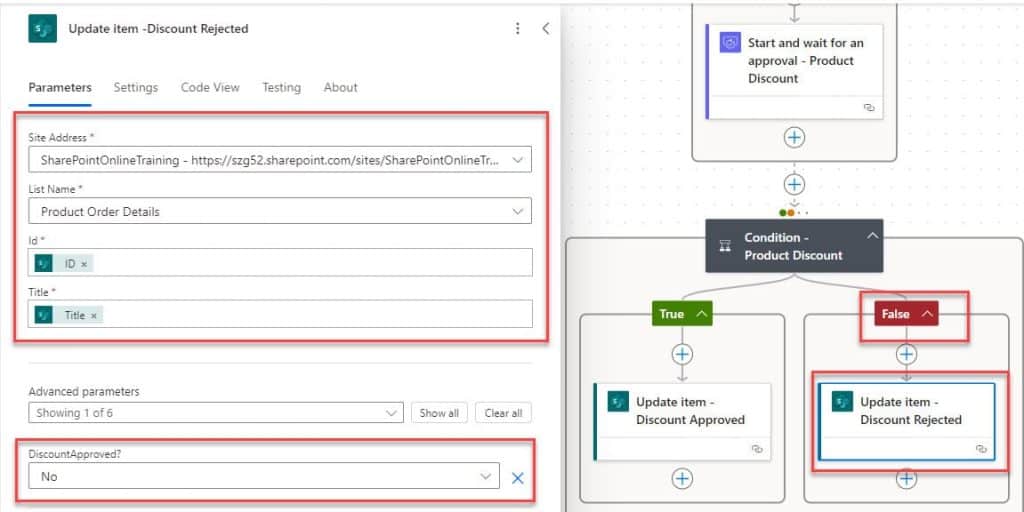

5. Under the False condition, take the Update item flow action to update the approved discount value.

See also  Create SharePoint Online List and Columns from Excel Using Power Automate [Download Complete Flow]

Set the parameters like Site address, list name, ID, and Title from the dynamic content.

  • Discount Approved? : Set the value to No from the drop-down options.
Power Automate start and wait for an approval time out

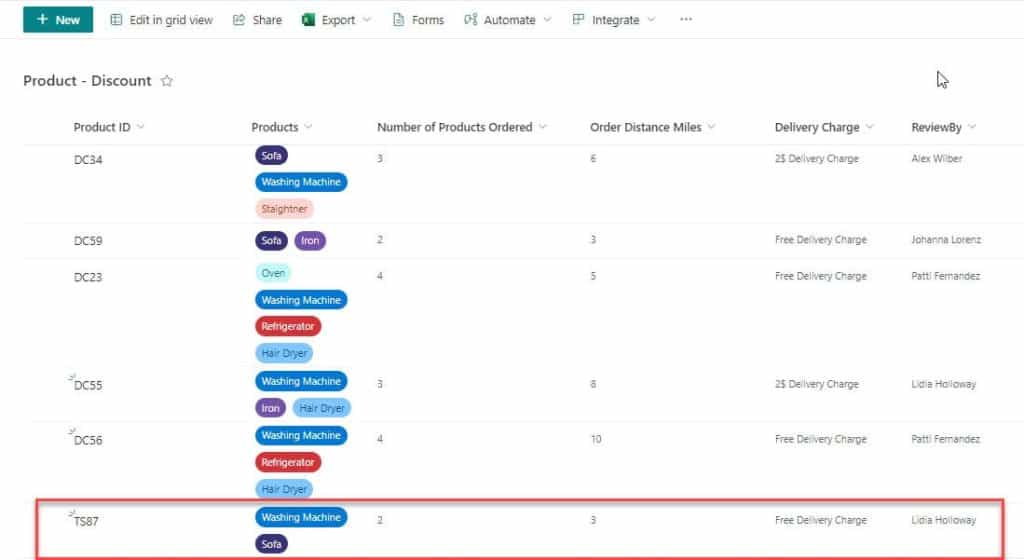

6. Now the flow is ready, save and run the flow manually once. To trigger the flow, add an item to the SharePoint list, as you can see from the below image:

Power Automate start and wait for approval timeout

Approval requests will be received by Review by person as shown in the figure below:

Start and wait approval Power Automate timeout

7. When the flow runs successfully, if the approval outcome is approved, it will update the Discount approved value to yes.

Refer to the image:

Power Automate approval response timeout

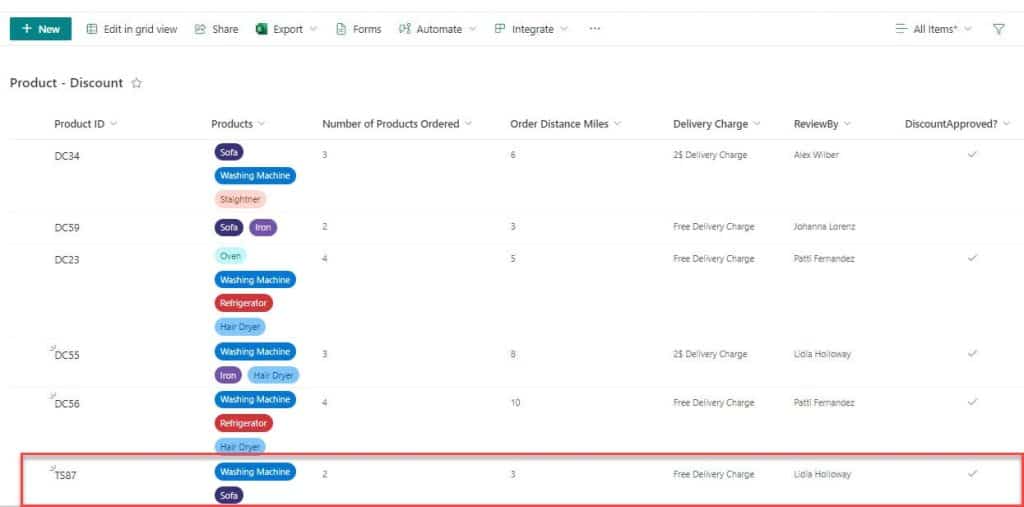

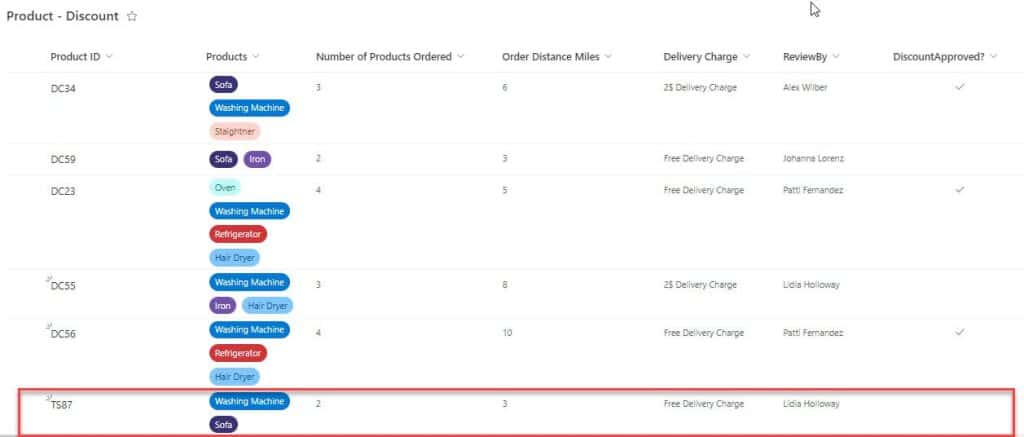

8. If the approval outcome is rejected -> Then, it will update the Discount approved value to No, as shown in the image below:

Power Automate condition approval outcome timeout

What will happen to the approval if the approval does not give the outcome within the time?

The flow will first check the outcome if the approval is on time. The following flow actions will not execute, and the flow won’t run in case the approval is timed out.

To make the flow run successfully, we must set the Run after property for the following actions.

  • Inside the condition action, Click on Settings -> Under the Run after click on context menu -> Select the check boxes like Is successful and Has timed out.
Approval outcome time out Power Automate

This is how to set timings in the start time and wait for an approval flow action in Power Automate.

Power Automate Condition Approval Outcome

To get the response of the approval condition in a Power Automate flow, follow the below-given requirement:

Example:

I have created a SharePoint list named ‘Products Ordered Details‘ with a few columns here.

Refer to the image below:

Power Automate approval response

In the above SharePoint list, when a user adds an item to the list:

  • Condition: If the number of products ordered is greater than or equal to 3.
See also  How to Send an email with options in Power Automate?

Then, an approval request with the custom possible discount options should be sent to the product review person. After that, the user should receive an Outlook email with the Outcome.

Create an Approval flow in Power Automate:

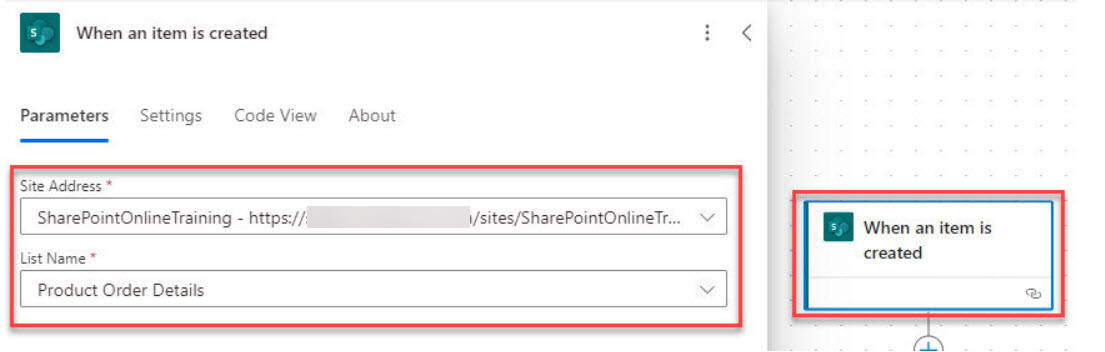

1. In the Automate cloud flow, choose When an item is created trigger. Set the parameters like Site Address and List Name.

Power Automate condition approval outcome

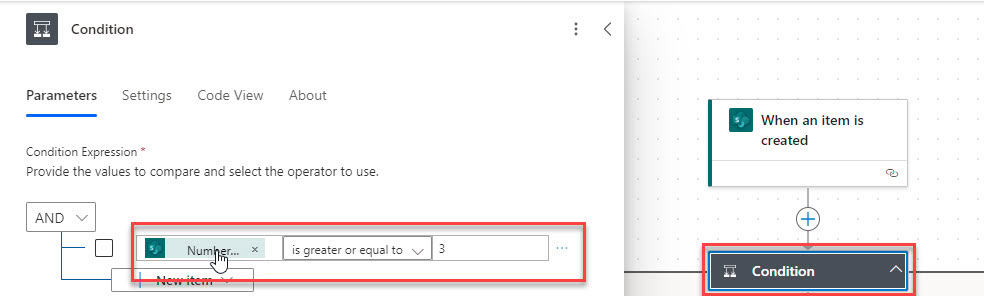

2. After that, I will take a Condition control flow action to provide a condition.

Choose ValueOperatorChoose Value
Number of products orderedis greater than or equal to3
Condition approval outcome Power Automate

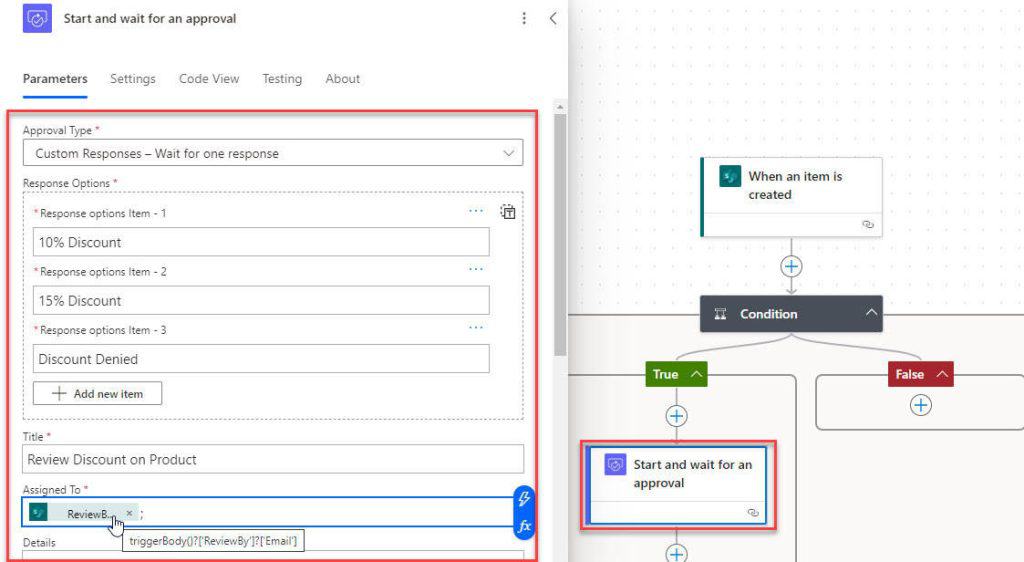

3. Under True conditions, take Start and wait for an approval action to send an approval request to product review by a person with the custom responses.

  • Approval Type: Select Custom Responses – wait for one response.
  • Response Options: Provide the response options according to your requirements manually.
  • Title: Give a title name for the approval request.
  • Assigned To: Choose Review By email from dynamic content.
Approval workflow in Power Automate

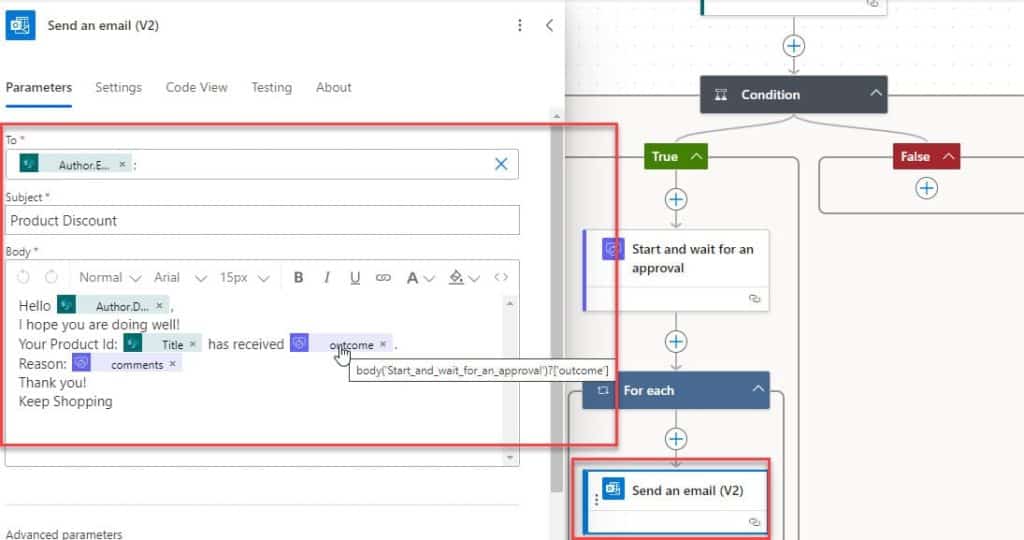

4. Next, add the Send an email(V2) flow action to send an email to the person who added the item to the SharePoint list.

  • To: Choose Created By email from the dynamic content.
  • Subject: Provide a subject line about the email
  • Body: Format the email body with a message and Outcome from the dynamic content.

If you have taken response comments in the body from dynamic content, each loop will be added automatically.

Approval outcome Power Automate

5. Once the flow is completed, save and run the flow manually. To trigger the flow, create an item in SharePoint as represented in the image below:

Power Automate approval response outcome

6. The below image shows the Approval request received by Review By person:

Microsoft Power Automate condition approval outcome

7. the output will display the outcome with the approval response comments when the flow runs successfully.

Check the image:

Start and wait for approval outcome Power Automate

This is all about the approval response from the start and wait for an approval action of Power Automate.

Conclusion

From this tutorial post, you may know how to use start and wait for an approval action in a Power Automate flow.
