How to Create Login Screen in PowerApps

Want to know about the PowerApps login screen? In this PowerApps tutorial, I will explain how to create a custom Login screen in Powerapps.

Also, We will cover these below things that are related to Powerapps Login Page as:

• How we can create a Powerapps Login page or screen using SharePoint List
• Create a login screen in PowerApps from a PowerApps Collection

If you are new to PowerApps, check out Microsoft PowerApps: Build an App from an Excel.

Create Powerapps Login Screen

First of all, We need to know why we will create a Login screen in Powerapps and secondly what is the need of creating it.

Giving the answer to this above question is, the Powerapps Login page is a simple screen that helps to users to enter the identifier information into a system. So that he or she can able to access that system (maybe a computer, a Website, or an app).

You may have an idea that, when you are accessing a particular App or Website, first, it is asking to log in the app by entering the username and Password. If that username and password validations are correct, then only the app will open otherwise it will give a notification error.

Similarly, We will create a custom Powerapps login screen where it contains a Username field, Password field, and a Login button. To do so, follow these below steps:

Step-1:

• Sign in the PowerApps app with your credentials.
• Create a blank new Canvas app and choose any one Layout either Tablet or Phone layout.
• Next, it will open a Blank Powerapps screen. Mainly, We need two screens where one screen is for User Login (where the user can enter the name and password) and another one is to display the Welcome message.
• To display the Welcome message, We can add a new blank screen (Home -> New screen -> Blank) and rename it to Welcome Screen.
• In the Welcome screen, Just add two Labels and set its Text property to “You Successfully Logged in!!” and “WELCOME TO POWERAPPS” as below:

Step-2:

On the User Login screen, add all these below Powerapps input controls as:

• Add three Label controls (One is for Title and others are for the Username and Password).
• Insert two Text input controls (One is for Username and another one is for Password).
• Make two text input’s Default property as blank and set both’s Hint text to (Enter Username and Enter Password).
• Select the Password text input control and set its Mode property as Password or TextMode.Password.
• Insert one Person Icon (Insert -> Icons -> Person) and place it beside the Username field.
• Insert another Icon as Lock (Insert -> Icons -> Lock) and place it beside the Password field.
• Next, add one Button (Insert -> Button) and set its Text property to LOGIN.

After adding all the Powerapps input controls to the User Login screen, it will look like the below screenshot:

Step-3:

Select the LOGIN Button and apply the below formula on its OnSelect property as:

OnSelect = If(
    txtPassword.Text = "TSInfo",
    Navigate(
        'Welcome Screen',
        ScreenTransition.None
    ),
    Notify(
        "Invalid Password!!! Please Enter a Valid Password",
        NotificationType.Error
    )
)

Where,

• txtPassword = Password text input control name
• “TSInfo” = I set the Password as TSInfo. Not only TSInfo but also you can set anything here inside the ” “.
• Navigate = Navigate is the function that helps to change from one screen to another screen.
• ‘Welcome Screen’ = This is the Screen name. When the user will successfully login without having any error, then this screen will appear.
• ScreenTransition.None = This is the transition argument where the new screen quickly replaces the current screen.
• Notify = Notify function helps to display a notification message to the end-user on the Power apps screen.
• “Invalid Password!!! Please Enter a Valid Password” = This is the error notification message that will display when a user will enter an invalid password.
• NotificationType.Error = This notification argument specifies the display message is an error message.

If you are interested to know more details about the Powerapps Notification function, then refer to the below link:

• How to use PowerApps notify function

The above code specifies, if the user will enter the Password as “TSInfo“, then it will navigate to the Welcome screen otherwise it will show the notification error message.

Step-4:

• Just save and preview (F5) the app. Enter the Username (any name) and Password as TSInfo and hit on the LOGIN button. Here, the Password input field is appearing with “……“, because I set its Mode property to Password.
• If the Password validation is correct, then at the same time the Welcome screen will appear as shown below.

• When you will enter an invalid password and then LOGIN, then the error notification will appear on the screen as below:

Create Powerapps Login Screen using SharePoint List

Here we will see how we can create Powerapps Login Page or screen using the SharePoint List. Basically, we will use the SharePoint list to store the users’ credentials.

When a user will log in to the Powerapps app, it will check whether the specific user is existing or not from the SharePoint List. If the user will exist, then the app will log in and navigate to the successful screen otherwise it will display an error notification.

Follow these below steps to do so:

Step-1:

I have created a SharePoint Online List named “User Credentials“. This list has two columns:

• Username: By default, this is a Title column with a Single line of text Data type. Just I renamed it to Username.
• Password: This is a single line of text data type that I created.

After creating the columns, just add some new records to it. The below screenshot represents my SharePoint Online List (User Credentials):

Step-2:

Next, Go to your Powerapps app and connect the SharePoint Data source to your app.

• Go to View tab -> Data sources -> Search SharePoint -> Add a new or existing connection -> Select your specific SharePoint Site -> Choose the specific list (User Credentials) -> Hit on Connect button.
• Then your SharePoint Online list will be added to your app as per the below screenshot.

Step-3:

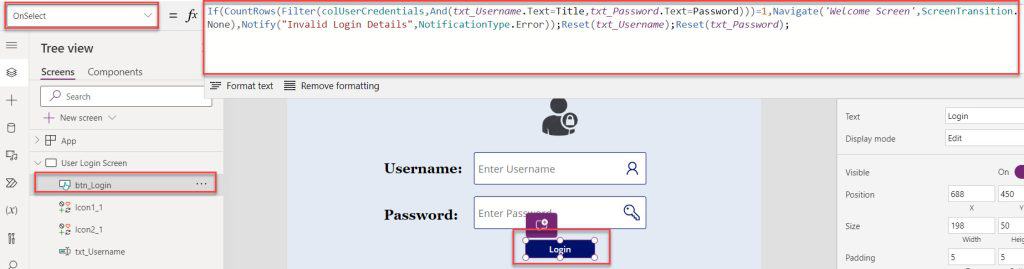

• Now, select the Log in Button from the app and apply the below formula on its OnSelect property:

OnSelect = If(
    CountRows(
        Filter(
            'User Credentials',
            And(
                txtUsername.Text = Title,
                txtPassword.Text = Password
            )
        )
    ) = 1,
    Navigate(
        'Welcome Screen',
        None
    ),
    Notify(
        "Invalid Login Details",
        NotificationType.Error
    )
);
Reset(txtUsername);
Reset(txtPassword);

Where,

• ‘User Credentials’ = SharePoint Online List that contains the Username and Password of a user
• txtUsername = Username text input control name
• txtPassword = Password text input control name
• Title = SharePoint column name that I renamed to Username and it contains the username of a user
• Password = SharePoint column name that contains the password of a user
• ‘Welcome Screen’ = This is the Powerapps Screen name. When the user will successfully login without having any error, then this screen will appear.
• Notify = Notify function helps to display a notification message to the end-user on the Power apps screen.
• “Invalid Login Details” = This is the error notification message that will display when a user will enter an invalid username or password.
• NotificationType.Error = This notification argument specifies the display message is an error message.
• Reset(txtUsername) = The Username field will clear once the user login.
• Reset(txtPassword) = The Password field will clear once the user login.

Step-4:

• Just save and preview (F5) the app. Enter the Username (any name) and Password of a user from the SharePoint list and hit on the Log in button.
• If the Username and Password validations are correct, then at the same time the Welcome screen will appear as shown below.

• When you will enter an invalid Username or an invalid password and then Log in, then the error notification will appear on the screen as like below:

You may like, PowerApps Count Function.

Create Login page in PowerApps Collection

Suppose, In Powerapps, you want to store some important User Login details. Then, in this case, you can collect it by using the PowerApps Collection.

Here, all things are the same as in the above examples. Just we need to take a Button and apply the Powerapps Collection formula on its OnSelect property.

• On the Powerapps screen, Insert one Button named “Login to Collect” and apply the below formula on its OnSelect property:

OnSelect = Collect(
    UserLogin,
    {
        UserName: txtUsername.Text,
        Password: txtPassword.Text
    }
)

Where,

• Collect = Collect is a function in Powerapps that helps to store the data in Powerapps memory
• UserLogin = Collection name where the User login details will store
• UserName = It specifies the column name that will store all the user names
• txtUsername = Username text input control name
• Password = It specifies the column name that will store all the user’s Password
• txtPassword = Password text input control name

• Now save and preview (F5) the app. Enter Username, and Password, and then hit on the Login to Collect button.

• Go to the Powerapps Collections (View -> Collections -> Click on Collection name [UserLogin]), there you can see your Login user credentials have been stored as like the below screenshot:

Also, you may like these below PowerApps Tutorials:

• PowerApps Popup message Box with Examples
• Get users from SharePoint Group in PowerApps
• PowerApps camera control + Save captured image in SharePoint
• PowerApps role based security SharePoint example (SharePoint Groups)
• PowerApps: Submit data to two SharePoint Lists
• PowerApps Patch Function with examples
• PowerApps set field value based on another field
• Embed PowerApps in SharePoint modern page
• How to use date time picker in PowerApps
• PowerApps Microphone Control – How to use
• How to build multilingual app in PowerApps

Here we learned, how to create a custom login page or screen in PowerApps.

Also, we saw how to create a Powerapps Login page or screen using SharePoint List and the steps to Create a Login page in PowerApps Collection.
