How to Group Items in a Power Apps Gallery?

Are you facing difficulties grouping the items in a Power Apps gallery control? You can follow this Power Apps tutorial to get all the information about how to group items in a Power Apps gallery.

Here, we will discuss how to group the SharePoint list items based on the choice column and display those group items on the Power Apps gallery.

We will also cover how to display group records based on the button click on the gallery control.

How to Group the Items in a Power Apps Gallery

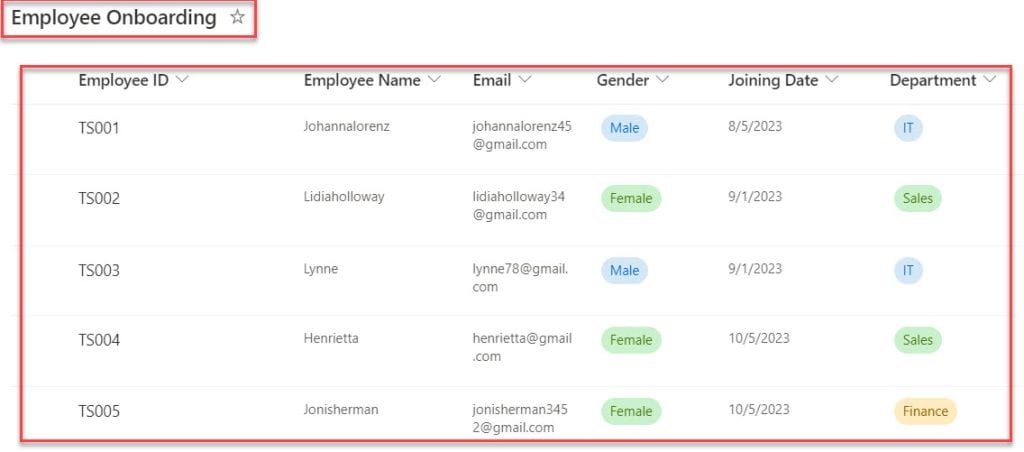

Let’s take a simple scenario. I have a SharePoint Online list named “Employee Onboarding” and this list contains the below fields.

Column NameData Type
Employee IDIt is a default single line of text
Employee NameA single line of text
EmialA single line of text
GenderChoice
Joining DateDate and time
DepartmentChoice
Group the Items in Power Apps Gallery

In Power Apps, there is a gallery control and a button control. The gallery control will display the group items based on the SharePoint list choice field [Department] using the button below.

Refer to the gif below:

To work around this, follow the below-mentioned steps. Such as:

1. Create a Blank Canvas app and connect it to the respective SharePoint Online list [Employee Onboarding] like below.

Group the Items in Power Apps Gallery Control

2. Insert a Blank flexible height gallery control and set its Items property to the code below:

Items = GroupBy(
    AddColumns(
        'Employee Onboarding',
        "DepartmentChoices",
        Department.Value
    ),
    "DepartmentChoices",
    "EmployeeDepartments"
)

Where,

  • GroupBy() = This Power Apps GroupBy() function helps to return a table with items grouped based on the values in one or multiple columns
  • AddColumns() = This formula helps to add a column to a tale based on the specified formula
  • ‘Employee Onboarding’ = SharePoint Online list
  • “DepartmentChoices” = New column name
  • Department = SharePoint choice field
  • “EmployeeDepartments” = Power Apps group name
How to Group the Items in Power Apps Gallery

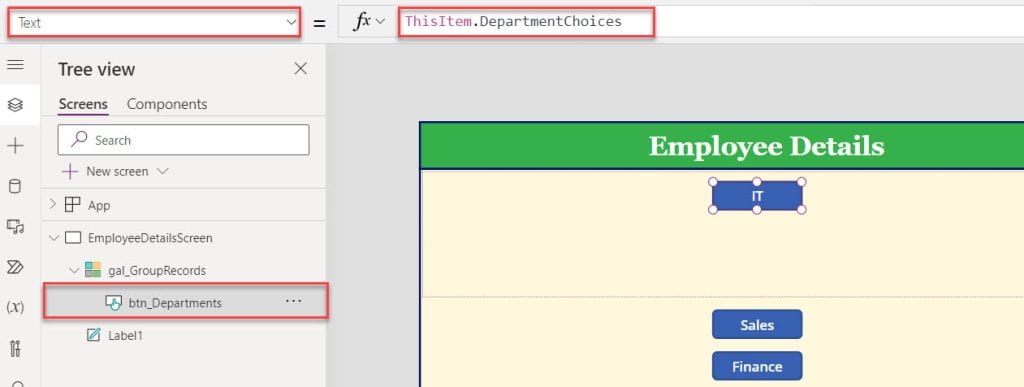

3. Then, insert a Button control inside the gallery and set its Text property to the code below.

Text = ThisItem.DepartmentChoices

Where,

  • DepartmentChoices = Power Apps new column name
How to Group Items in Power Apps Gallery

4. Insert another gallery control [gal_NestedGroupRecords] inside the gallery and set its Height property to the code below.

Height = Parent.TemplateHeight-btn_Departments.Height

Where,

  • btn_Departments = Power Apps Button Control Name
How to Group Items in the Power Apps Gallery Control

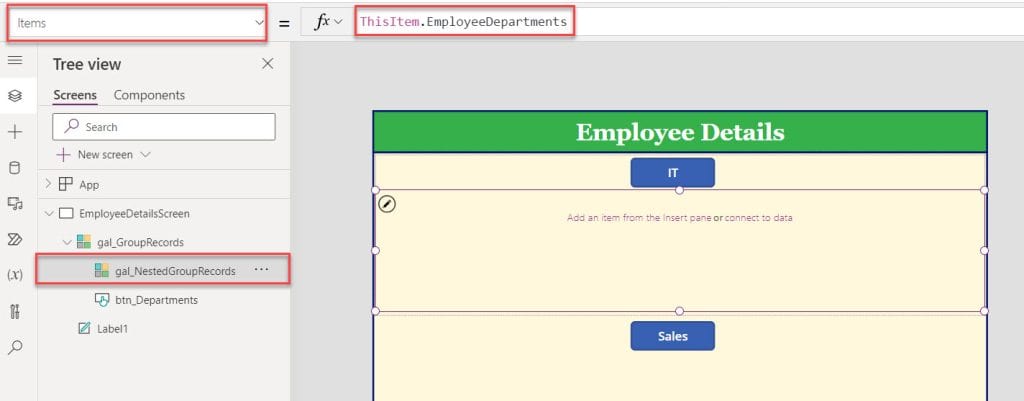

5. Then, click on the nested gallery control and set its Items property as:

Items = ThisItem.EmployeeDepartments

Where,

  • EmployeeDepartments = Power Apps Group Name
How to Group Items in the Power Apps Gallery

6. Next, select the nested gallery -> Insert respective Text label controls and set its Text properties as:

Text = ThisItem.Title

Text = ThisItem.EmployeeName

Text = ThisItem.Email

Text = ThisItem.JoiningDate

Text = ThisItem.Department.Value
Group the Items in a Power Apps Gallery Control

7. Once your app is ready, Save, Publish, and Preview the app. The gallery control displays grouped records based on the SharePoint list choice fields [Departement] as in the screenshot below.

Group Items in the Power Apps Gallery Control

This is how to group the items in the Power Apps gallery control.

See also  Dataverse Error - Please configure your pop-up blocker to allow this site to create pop-up windows

Group the Items in Power Apps Gallery Using Button Click

Next, we will see how to group the items in the Power Apps gallery using a button click with a simple example.

Example:

I will also take the above Power Apps gallery control [gal_GroupRecords] for this example. Now, I would like to display the group records based on the button click, i.e., [btn_Departments] as shown below.

To achieve it, follow the below steps. Such as:

1. On the Power Apps Screen -> Select a nested gallery [gal_NestedGroupRecords] inside the gallery control -> Set its Visible property to the code below.

Visible = ThisItem.IsSelected
Group the Items in Power Apps Gallery Using Button Click

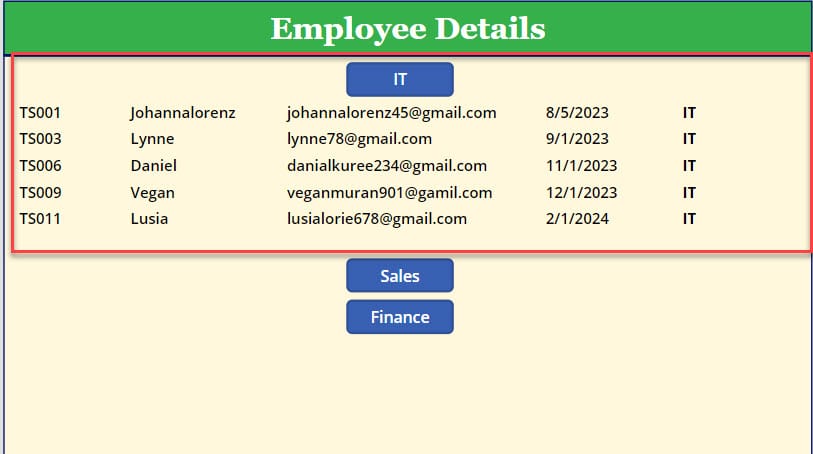

2. Save, Publish, and Preview the app. The Power Apps gallery control displays grouped items based on the respective button click, as in the screenshot below.

Group Items in Power Apps Gallery Using Button Click

This is how to group the items in the Power Apps gallery using a button click.

Conclusion

This Power Apps tutorial explains how to group the items in a Power Apps gallery.

Here, we discussed how to group the SharePoint list items based on the choice column and display those group items on the Power Apps gallery.

Last, we covered how to display group records based on the button click on the gallery control.
