How to Filter Power Apps Line Chart Based On Date Range?

Recently, I developed a Power Apps dashboard for the Travel Requests application. There, I was required to filter the number of travel requests based on travel type within the selected date range, which needs to be displayed on the Power Apps line chart.

In this article, I will explain how to filter Power Apps line chart based on Date range with a simple example.

Filter Power Apps Line Chart Based On Date Range

I have a SharePoint list named “EmployeeTravelRequests.” It has a TravelType choice column and a Date column. We’ll filter for each travel type and the number of requests within the selected date range.

power apps line chart multiple series

In the example below, I have a Power Apps line chart displaying the number of travel requests for each travel type.

When I select the dates in the From and To date picker controls, the line chart filters the number of travel requests according to the date range.

How to create a power apps line chart with a date range

To achieve this, follow the steps below!

1. Connect the SharePoint list with the Power Apps application. Then, add a Line chart from the +Insert tab. Also, two DatePicker controls should be added to filter the line chart.

power apps line chart filter based on dates

2. Provide the formula below in the OnChange property of the date picker control [DatePicker_From].

Set(varFromDate,DatePicker_From.SelectedDate);
ClearCollect(
    colFilteredTravelRequests,
    Filter(EmployeeTravelRequests,
        Date >= varFromDate && Date <= varToDate
    )
)

Here,

  • varFromDate = Variable that stores the selected date.
  • EmployeeTravelRequests = SharePoint list name.
  • Date = SharePoint list date column name.
  • colFilteredTravelRequests = Collection that contains the output of the filter function.
  • varToDate = Variable name that will be created on other date picker control on change property.
line chart power apps

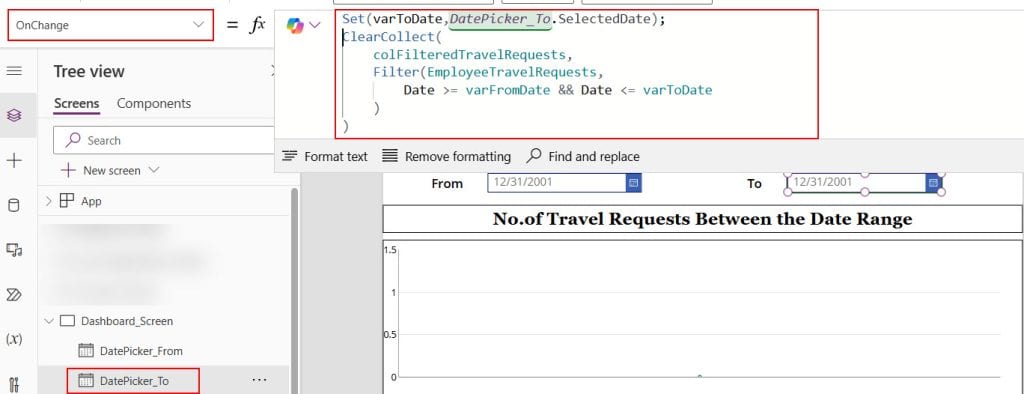

3. Provide the formula below in the OnChange property of date picker control [DatePicker_To].

Set(varToDate,DatePicker_To.SelectedDate);
ClearCollect(
    colFilteredTravelRequests,
    Filter(EmployeeTravelRequests,
        Date >= varFromDate && Date <= varToDate
    )
)

varToDate variable contains the selected date.

power apps chart from sharepoint list

4. Add the formula below in the Line Chart Items property.

AddColumns(
    AddColumns(
        GroupBy(
            AddColumns(
                ShowColumns(
                    colFilteredTravelRequests,TravelType
                ),
                TravelTypeColumn,
                TravelType.Value
            ),
           TravelTypeColumn,
            GroupedRequests
        ),
        'Number of Requests',
        CountRows(ThisRecord.GroupedRequests)
    ),
    labelvthNumbers,
    Concatenate(
        TravelTypeColumn,
        "(",
        'Number of Requests',
        ")"
    )
)

The above code creates two columns, labelvthNumbers and ‘Number of Requests.’ It fetches data from the colFilteredTravelRequests collection that we created above.

  • TravelType = SharePoint list choice column name.
  • The AddColumns() function adds a column to the collection.
  • ShowColumns() functions display the column that we specified.
  • The Concatenate () function adds the number of requests next to the travel type name.
  • The GroupBy() function creates a table with records grouped based on the travel type column.
  • CountRows() function counts the number of records in the grouped table.
powerapps line chart from sharepoint list choice field

5. To display the values while filtering, set the ShowValues property to true.

powerapps line chart by date range filter

6. Open the Properties of Line Chart on the right pane -> Select Advanced -> Under Items -> Provide the following.

  • Label – Select labelvthNumbers from the dropdown.
  • Series – Select the Number of Requests from the dropdown.
filter powerapps line chart by date range
Note: Add reset icons for two date picker controls to reset the selected.
Syntax: Reset(DatePicker control name);

Now, save and publish the app. While previewing, select the dates using two date picker controls; the line chart will display the number of requests between the selected date range.

I hope you understand how to display the number of users per SharePoint list choice column based on a selected date range.

You can refer to this article while trying to implement any date filter-related things on the Power Apps line chart.
